Enkel- eller dubbelsidig laminator för bokomslag. En halvautomatisk lamineringsmaskin idealisk för omslagslaminering och inkapsling med filmer från 25 till 250 mikron. Justerbar temperatur av rullarna och hastigheten leder till en perfekt laminering. Finns med manuell- eller  halvautomatisk ”luftsugmatning.”

Click to download the Product Sheet

Kategori: Etiketter: ,

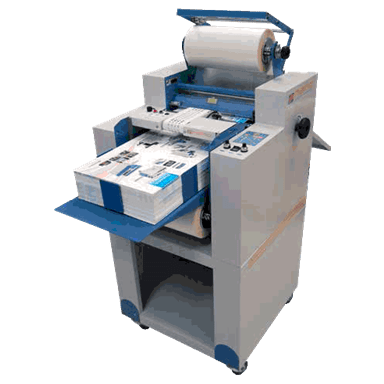

Automatic roll laminator with high pile suction feeder

Single or double side automatic laminator ideal for single side cover lamination and encapsulation with films from 25 to 250 microns.Adjustable temperature of the rollers and speed will let you obtain a perfect laminating result depending on the film used.Automatic high pile suction feeder with adjustable speed and delay will let you process any kind of glossy paper while perfectly adjust sheets overlapping for later precise trimming. Adjustable de-curling bar provides a flat results on single side laminations and the perforating device installed on top of upper lamination roll allow an easy and clean manual separation of single side laminated sheets. The optional bursting unit can be installed in order to make this process even more automatic and more time efficient up to a production of 270 sheets (DIn A3) per hour.


•Max working width (mm): 340
•Max paper width (mm): 350
•Max paper thickness (gsm): 350
•Film thickness (um): 25-250
•Max temperature: 170° c
•Independent lower roller heating system can be switchedoff in order to allow single side (upper) hot lamination
•Rollers diameter: 45mm
•control panel with preset function
•Roller pressure adjustment: manual
•Power consumption (W): 1100
•Power requirements (V – hz): 230 – 50/60

Dimensions and Weight
•Dimension (mm): 730x750x1420
•Weight (Kg): 62

Specifications (optional):

•Maximum paper width: 350 mm
•Traction rollers width: 35 cm
•Double separator roller•Operation is restriction-free paper length•Delivery tray
•User-friendly paper length setting
•Electric Pcb with motor protection system
•Power requirements: 230V•Power consumption: 50W

Dimensions and Weight:
•lxPxh 472x300x416mm
•Weight: 25kg
